XAVIS XSCAN-A-Series

Micro Pioneer (SEA) Sdn Bhd / XAVIS XSCAN-A-Series

XSCAN-A100R

The Answer for Quality

Xscan A-Series : Compact dimension using by Flat Panel Detector comparing to Image Intensifier minimized the Magnification using by Detector Tilt comparing to table tilt availvable to Large Size PCB

+ - Introduction

Application

  • PCB, PCBA Surface Mounted Board, MLB, ect.
  • μBGA, BGA, CSP, ACF, Flip-Chip, FPCB
  • Semiconductor Chip, Fine Pitch Electronic Components, etc.
  • Engineering Plastic Injection Molding, Camera Module, etc.
  • Rechargeable Batteries (incl. EV & ESS)

Feature

  • High Resolution FPD (Flat Panel Detector)
  • Detector Tilt (50˚)
  • Large PCB size Available
  • Navigation User interface (CNC Programming)
  • Real 3D CT (option)
  • Tube Focus Size : 5㎛
  • World class High resolution X-ray image
  • Various Optional Functions (Rotation, CT, 3D)
  • Easy to Use & User Friendly Operation

+ - Specifications

Focal Spot Size 5㎛
Voltage/Current 100kV / 250uA
Magnification x214 / x429
X-Ray Detector FPD (Flat Panel Detector)
Detector Tilt Angle Tilt 50˚
Manipulator Basic] 4-Axis (X, Y, Z, Detector Tilt) / Option] Cone Beam CT Rotation
Table size

(=Inspection Area)

500 x 500 mm
Max. Sample Loading 5kg
X-Ray Leakage Dose <1uSv/hour
Dimension

(WxDxH mm)

1360 x 1440 x 1700
Equipment Weight

(kg)

1400kg
Power Supply 220 VAC Single phase 50/60Hz
Remarks Option] Cone Beam CT&3D / Rotation Table

+ - Gallery

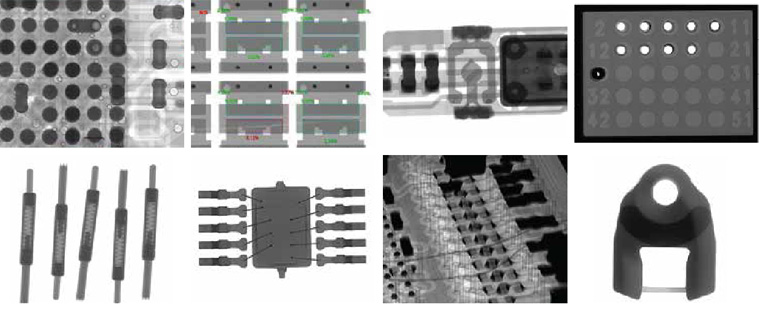

Inspection Image

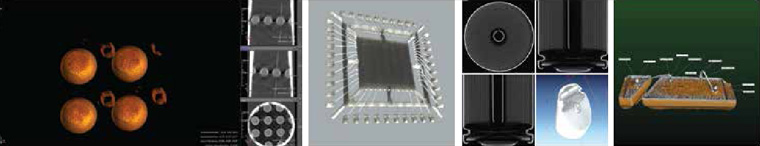

CT and 3D Volume Rendering

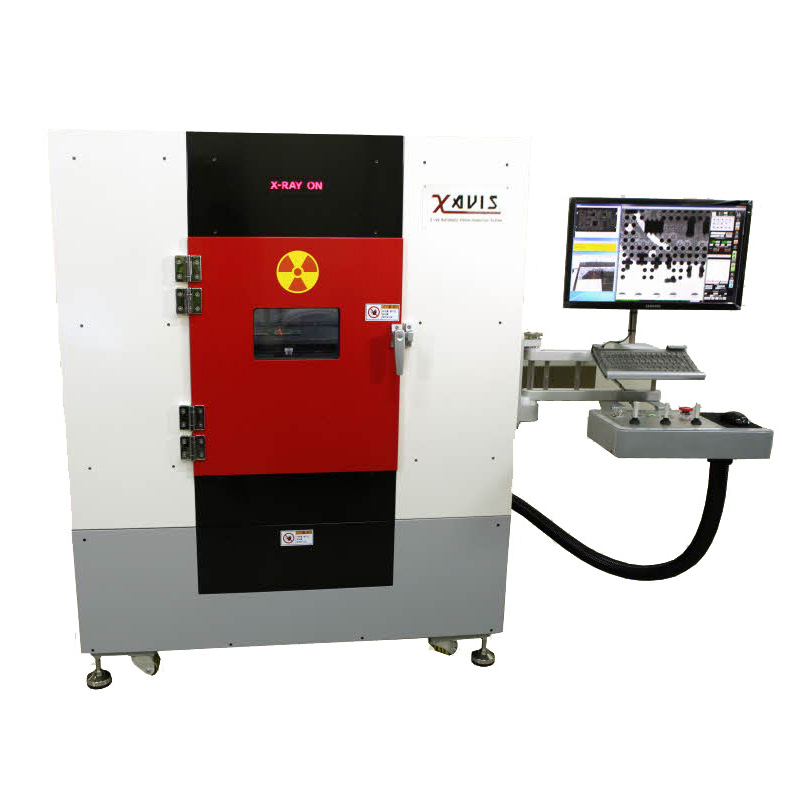

XSCAN-A130H

The Answer for Quality

Xscan A-Series : Compact dimension using by Flat Panel Detector comparing to Image Intensifier minimized the Magnification using by Detector Tilt comparing to table tilt availvable to Large Size PCB

+ - Introduction

Application

  • PCB, PCBA Surface Mounted Board, MLB, ect.
  • μBGA, BGA, CSP, ACF, Flip-Chip, FPCB
  • Semiconductor Chip, Fine Pitch Electronic Components, etc.
  • Engineering Plastic Injection Molding, Camera Module, etc.
  • Rechargeable Batteries (incl. EV & ESS)

Feature

  • High Resolution FPD (Flat Panel Detector)
  • Detector Tilt (50˚)
  • Large PCB size Available
  • Navigation User interface (CNC Programming)
  • Real 3D CT (option)
  • Tube Focus Size : 5㎛
  • World class High resolution X-ray image
  • Various Optional Functions (Rotation, CT, 3D)
  • Easy to Use & User Friendly Operation

+ - Specifications

Focal Spot Size 5㎛
Voltage/Current 130kV / 300uA
Magnification x158 / x316
X-Ray Detector FPD (Flat Panel Detector)
Detector Tilt Angle Tilt 50˚
Manipulator Basic] 4-Axis (X, Y, Z, Detector Tilt) / Option] Cone Beam CT Rotation
Table size

(=Inspection Area)

500 x 500 mm
Max. Sample Loading 5kg
X-Ray Leakage Dose <1uSv/hour
Dimension

(WxDxH mm)

1360 x 1440 x 1700
Equipment Weight

(kg)

1400kg
Power Supply 220 VAC Single phase 50/60Hz
Remarks Option] Cone Beam CT&3D / Rotation Table

+ - Gallery

Inspection Image

CT and 3D Volume Rendering
