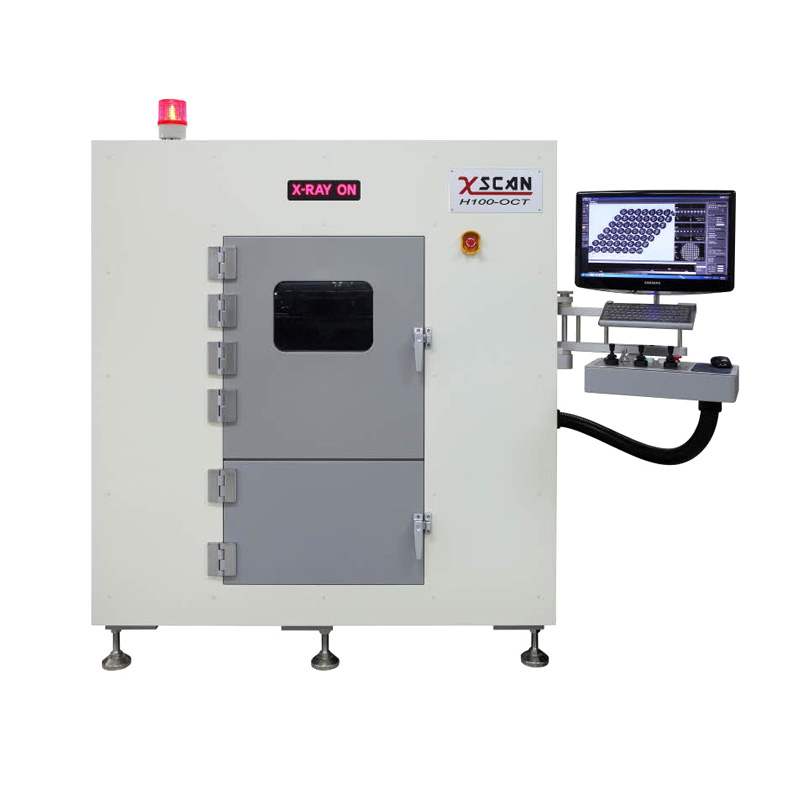

XSCAN-H100-OCT

5 Inch Flat Panel Detector (2,352 x 2,944 pixels) X-ray Inspection System

+ - Introduction

Application

  • PCB, SMT, LED, Semiconductor, LCD, Automotive, Battery
  • μBGA ,BGA, CSP, ACF, Flip-Chip ,FPCB etc

+ - Specifications

Tube Type Closed
Focal Spot Size 5.0㎛
Min. Detectability 3.0㎛
Max. Output Power 20W
X-Ray Detector 5 inch Flat Panel Detector (2352×2944 pixels)
Detector Tilt Angle 60˚
Table Rotation 360˚
Table size

(=Inspection Area)

525 x 540 mm
Max. Sample Loading 5kg
 Manipulator  7-Axis (X1, Y1, X2, Y2, Z, Detector Tilt, Table Rotation)
 X-Ray Leakage Dose  <1uSv/hour
 Dimension

(WxDxH mm)

1700 x 1700 x 1800
Equipment Weight

(kg)

3300kg
Power Supply 220 VAC Single phase 50/60Hz
Remarks CT & 3D

+ - Gallery

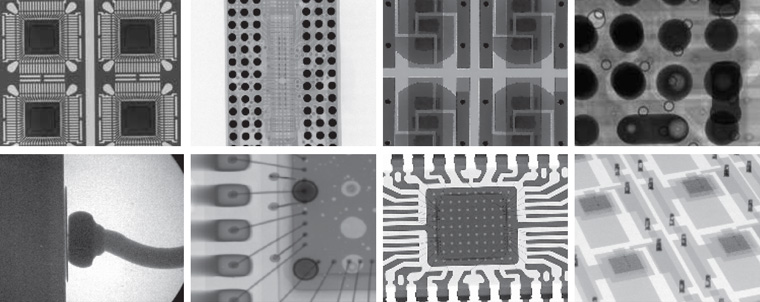

2D & Tilt View Inspection Images

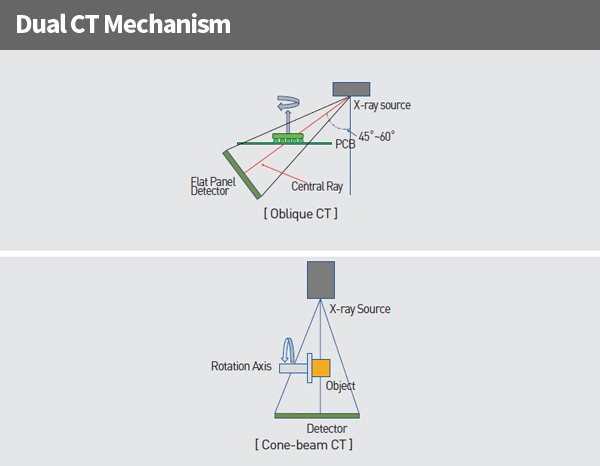

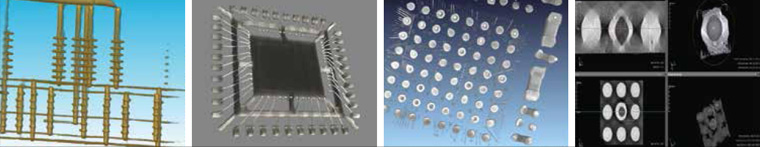

Oblique CT & 3D Rendering Images

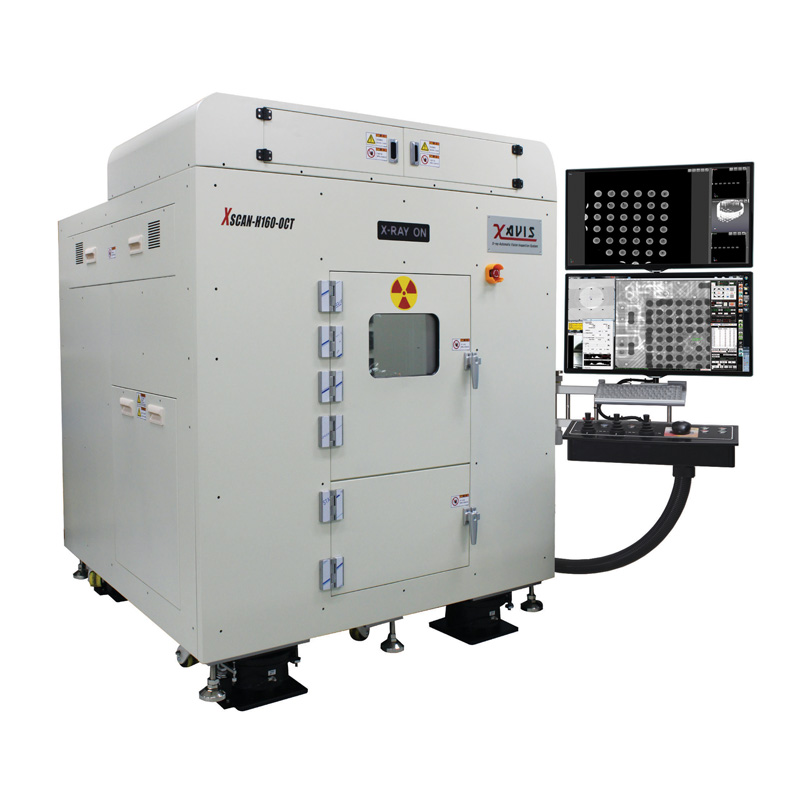

XSCAN-H160-OCT

2D & 3D oFF-LINE HIGH RESOLUTION X-RAY INSPECTION SYSTEM

+ - Introduction

Application

  • PCB, SMT, LED, Semiconductor, LCD, Automotive, Battery
  • μBGA ,BGA, CSP, ACF, Flip-Chip ,FPCB etc

+ - Specifications

Tube Type Open
Focal Spot Size 2.0/0.9㎛
Min. Detectability 0.7㎛
Max. Output Power BE Target : 10W, Diamond Target : 23W
X-Ray Detector 5 inch Flat Panel Detector (2352×2944 pixels)
Detector Tilt Angle 60˚
Table Rotation 360˚
Table size

(=Inspection Area)

525 x 540 mm
Max. Sample Loading 5kg
 Manipulator  7-Axis (X1, Y1, X2, Y2, Z, Detector Tilt, Table Rotation)
 X-Ray Leakage Dose  <1uSv/hour
 Dimension

(WxDxH mm)

1700 x 1700 x 1800
Equipment Weight

(kg)

3500kg
Power Supply 220 VAC Single phase 50/60Hz
Remarks CT & 3D

+ - Gallery

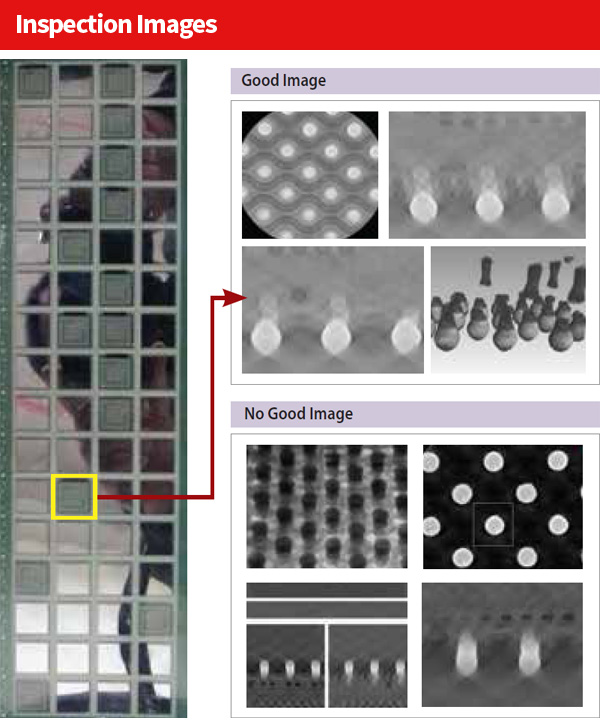

2D & Tilt View Inspection Images

Oblique CT & 3D Rendering Images
